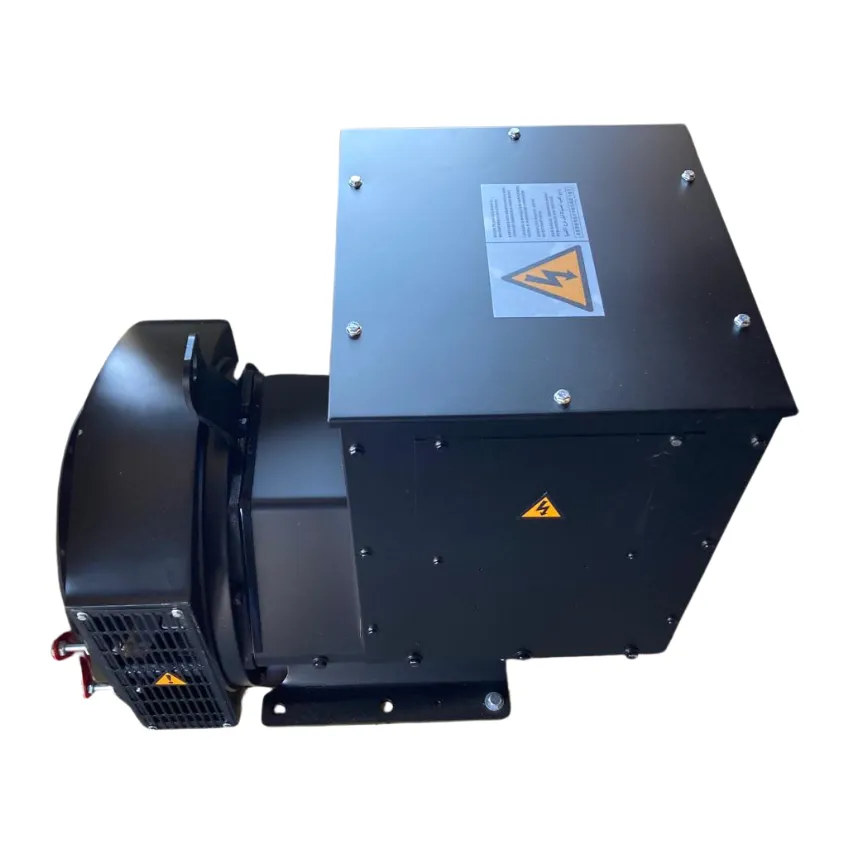

140KVA 112KW Alternator – IEP274E

About this part

A brushless alternator with an AVR gives a regulated supply with no brushes or slip rings to wear, which is why it is the standard choice for standby and prime-power sets.

Features

• Premium Brushless Design with Advanced AVR Technology
• Class H Insulation for Superior Temperature Management
• IP22 Protection Rating for Enhanced Durability
• Precision-engineered 4-pole Configuration
• 1500 RPM for 50Hz / 1800 RPM for 60Hz Operation
• Outstanding Voltage Regulation (±1.0%)
• Robust Short Circuit Protection
• Exceptional Waveform Quality (TIF<50, THF<2%)

When to replace it

• Building a new generating set
• Replacing an alternator with damaged windings
• Upgrading a set to a different output rating

Before you order

Confirm the engine flywheel and housing (SAE) size and the bearing arrangement before ordering. A single-bearing alternator is carried by the engine flywheel at one end and needs the matching coupling discs.

Match the number stamped on the part you are removing, or the number in your engine or alternator manual, before ordering. Part numbers are shown for reference so the right replacement can be identified.
