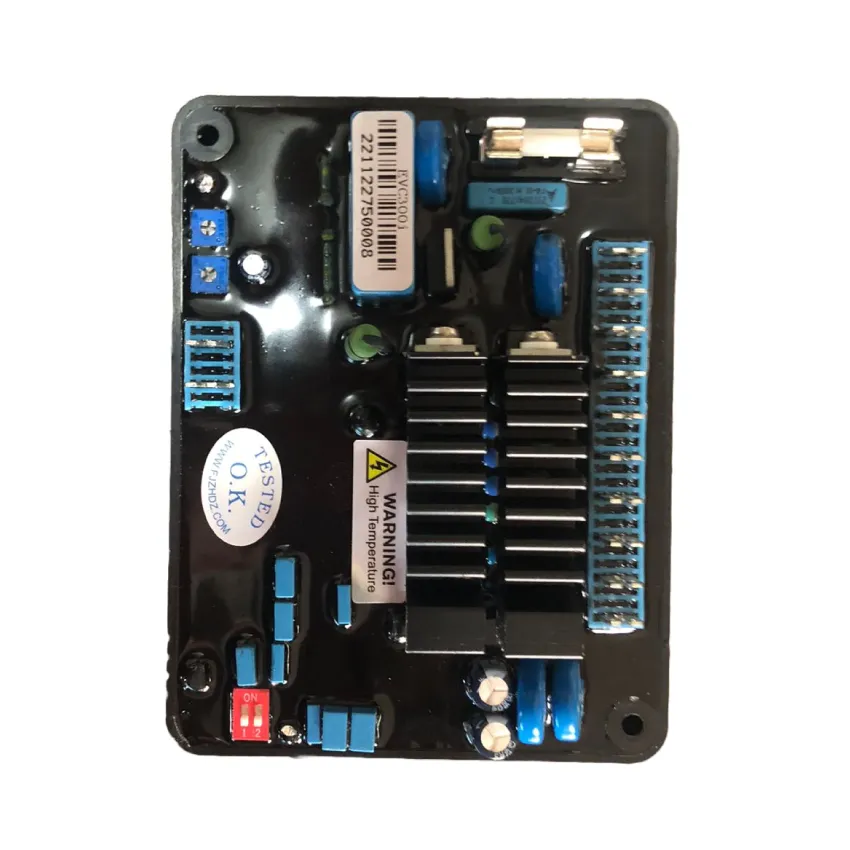

EVC300I Engga Automatic Voltage Regulator

Description

The EVC300I Engga Automatic Voltage Regulator is thyristor base to control DC exciter field power of conventional 50 or 60 Hz brushless generators. The AVR circuitry includes under speed and over load protection features. Excitation power is derived directly from the generator terminals.
Specification of the EVC300I Engga Automatic Voltage Regulator

Voltage: 180 to 250 Vac
Frequency: 50 Hz or 60 Hz
Voltage Adjustment Range: 180 – 300 Vac, 300 – 520 Vac
Maximum Output Voltage: 90 Vdc @ 240 Vac
Maximum Continuous Output current: 6.3 A @ 240 Vac
Voltage Buildup: 4 Vac, 30 Hz
Dimensions: 122 mm L x 93 mm W x 38 mm H
Weight: 10g
