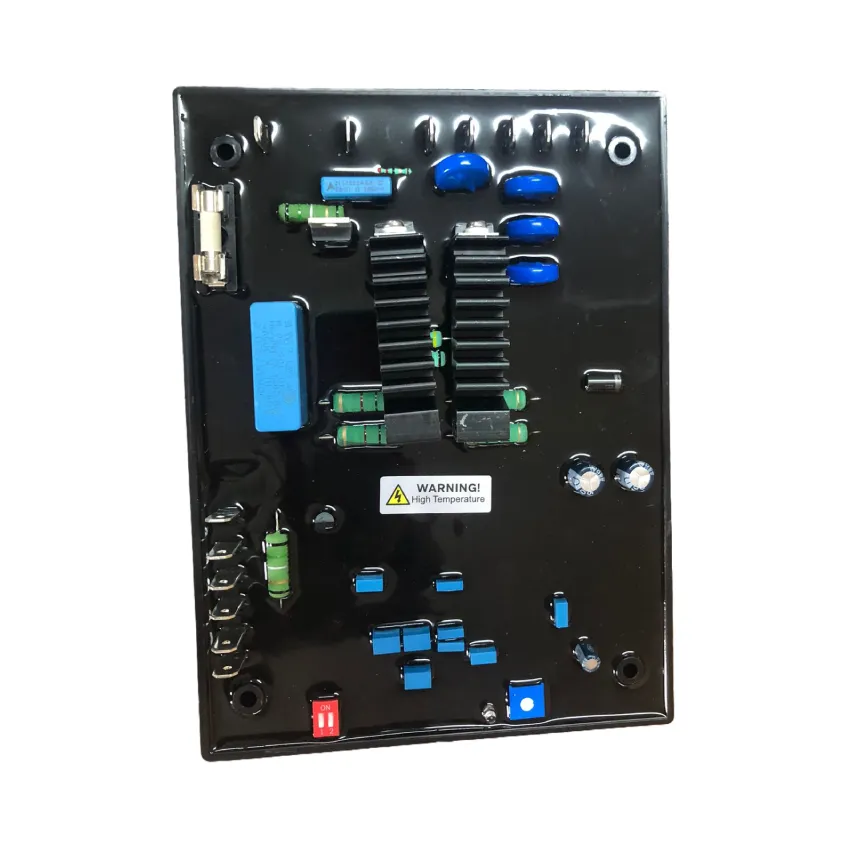

EVC600I Engga Automatic Voltage Regulator

Description

EVC600I Engga Automatic Voltage Regulator is alternator output voltage regulating equipment, its design is based on half-wave phase-controlled rectifier principles and our company generator excitation characteristics. It can be used for the auxiliary winding, phase power Excitation Generator. The feature is high stability, fast response, easy installation and maintenance, etc.
Specifications of the EVC600I Engga Automatic Voltage Regulator

Output Volatage: Max 96V @220Vac
Continual current : 8A
Max transient current: 10A, ≤ 10 second
Field winding resistance: Min. 9Ω
Power input voltage (AC): 180~250Vac,50/60Hz
Power: Max 1000VA (240 Vac）
Sense voltage (AC):
180~250Vac（220Vac System）single phase, 50/60 Hz;
350~480Vac（400Vac System）single phase, 50/60 Hz;
Power consumption: 5 VA
Voltage adjustment range: 180~300 Vac ;350~500Vac
Regulation: ±1%
Thermal drift:＜0.05% /℃
Response time: 1.5s
Power consumption: Max 40W
Operating temperature: -30ºC ~ +80ºC
Relative humidity: 95%
Net weight: 0.62 kg
