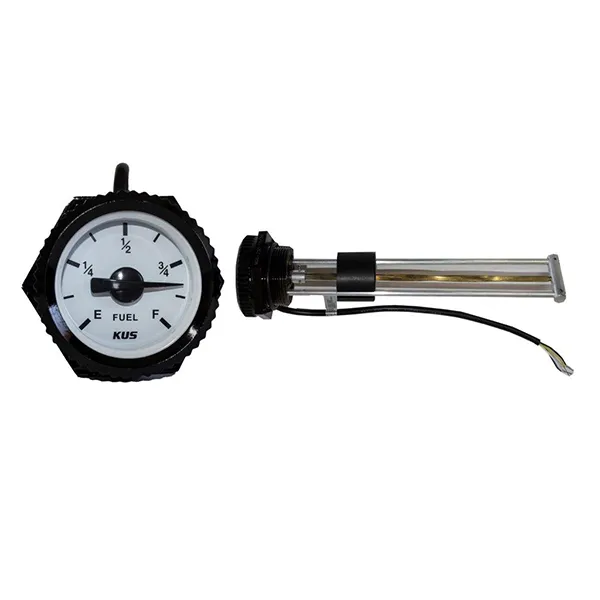

MGS-250 Mechanical Gauge with Sensor Alarm – 250MM

Description

The MGS-250 mechanical gauge with alarm sensor is extremely useful for monitoring the liquid levels of generator fuel, water or oil tanks. The alarm sensor, when set for low level alarm will let the user know when the float reaches the critical level and needs to be refilled. It can also be set for a high level alarm. The unit integrates the function of level measuring and level display directly. As the float goes up and down it shows instantly on the dial. The gauge can be used to measure any static liquid be it water, diesel or other fuel. The units are manufactured of sturdy aluminium alloy which is corrosion resistant and adds to the durability of the product.
Specifications of the MGS – 250 Mechanical Gauge with Sensor Alarm – 250MM
The unit has a threaded attachment which has been made to fit a standard 45 x 2 metric thread or an Imperial BSP one and a half inch thread. These are standard sizes for many tanks and if there is no facility on the tank to attach the mechanical gauge a flange is available in a standard six hole configuration or a weld flange for a metal tank. The screw in torque is 300 to 400 Neuton metres and the gauge comes in a variety of length ranging from 120mm up to 700mm long. The gauge is accurate to within 5 percent. The operating temperature of the unit is between – 40 degrees Celsius and 85 degrees Celsius.
Characteristics of the MGS – 250 Mechanical Gauge with Sensor Alarm – 250MM
The alarm current is below 0.5 Amps and it can be monitored long distance if necessary. The high and low levels can be set by the user with the alarm points being either 9/10 or 1/10. The unit is manufactured from high quality materials and will last well in any environment. The dial is large at 62mm diameter with easy to read black numerals on a white dial face. The mechanical gauge has been designed to have few moving parts to ensure there is little that can go wrong with it. Order an MGS – 250 Mechanical Gauge with Sensor Alarm – 250MM online or,  contact Generator Parts today
