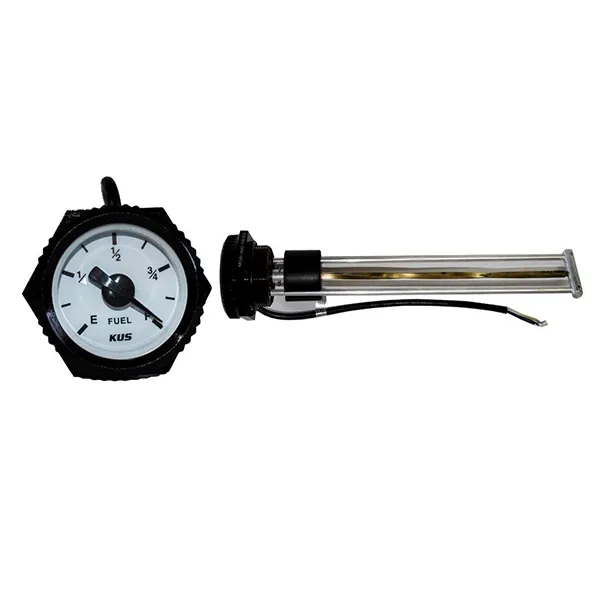

MGS-300 Mechanical Gauge with Sensor Alarm – 300MM

Description

All generators and alternators require fuel and cooling. This means that they all have a fuel tank and a water or oil tank. To ensure that the levels of the tanks are conducive to efficient performance they need to be at the optimum levels. The MGS-300 mechanical gauge is simple in design and extremely reliable and it also has an alarm which notifies the operator when the levels need adjusting. If there are multiple generators in a system it may be difficult to keep a close eye on all the machines and a sensor alarm will quickly identify which generator needs attention. The gauge integrates the function of level measuring and level display directly. The levels of the tank can be monitored long distance with the sensor alarm feature.
Technical specifications of the MGS – 300 Mechanical Gauge with Sensor Alarm – 300MM
This gauge is 300mm long and will fit into a metal tank with a depth of at least 312,5mm and a plastic tank of 325mm depth. The gauge is threaded for screwing into the gauge fitting on the tank and they are standard metric or standard imperial sizes. The recommended screwing torque is 300 to 400 Neuton metres. If there is no standard thread attachment on the tank a flange option is available. The alarm current is below 0.5 Amps and the alarm level can be set at a level of 1/10 or 9/10. The operating temperature of the mechanical gauge is between -40 degrees Celsius and 85 degrees Celsius. The integrated precision of the instrument is around 5 per cent.
Characteristics of the MGS – 300 Mechanical Gauge with Sensor Alarm – 300MM
The unit is robust and easy to use with few moving parts so that very little can go wrong with it. It is made of an aluminium alloy which is corrosion resistant and ensures durability. There is a wide range of sizes in the MGS mechanical gauge and they start at 120mm long and go up to 700mm long. All use the same standard thread size and have a white face with black numerals. Order an MGS – 300 Mechanical Gauge with Sensor Alarm – 300MM online or,  contact Generator Parts today.
