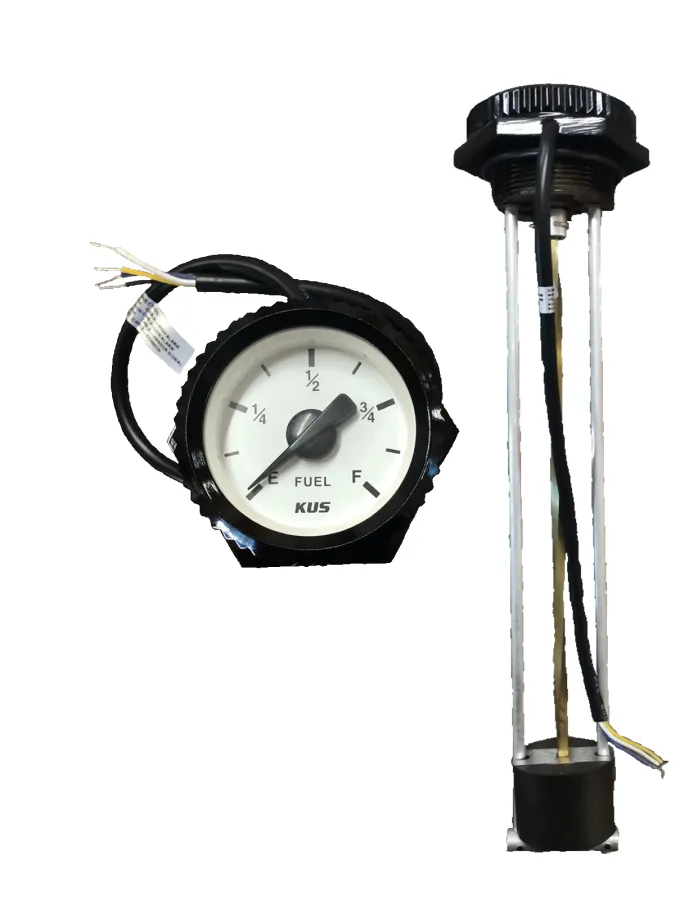

MGS-500 Mechanical Gauge with Sensor Alarm – 500MM

SKU: MGS-500 Categories: ,
Description

Description

The MGS-500 mechanical gauge with alarm sensor is extremely useful for monitoring the liquid levels of generator fuel tanks. The alarm sensor when set for a low level alarm will let the user know when the float reaches a critical level and needs to be refilled. It can also be set for a high level alarm. The unit integrates the function of level measuring and level display directly. As the float goes up and down it shows instantly on the dial. The gauge can be used to measure any static liquid be it water, diesel or other fuel. It is manufactured of sturdy aluminium which adds to the durability of the product.
Specifications of the MGS-500 Mechanical Fuel Gauge with Sensor Alarm – 500MM
The unit is made to fit a standard 45 x 2mm metric thread or an Imperial BSP one and a half inch thread. These are standard sizes for many tanks. If there is no facility on the tank for a screw in mechanical gauge a flange is available with 6 holes. This can be secured with screws to the tank and the mechanical gauge can screw into it. If the user prefers there is a welding flange available. The screw in torque is 300 to 400 Neuton metres and the gauge comes in a variety of lengths ranging from 120mm up to 700mm long. The operating temperature of the unit is between -40 degrees Celsius and 85 degrees Celsius.
Characteristics of the alarm sensor for the MGS-500 Mechanical Fuel Gauge with Sensor Alarm – 500MM
The alarm sensor has a high level or low level option which can be set by the user. The alarm current is below 0.5 Amps. The alarm can be monitored long distance if necessary and the alarm point can be set at either 9 / 10 or 1 / 10. This unit is a high quality and will last well in any environment. The dial is large at 62mm diameter with easy to read black numbers against the white dial face. Order an MGS-500 Mechanical Fuel Gauge with Sensor Alarm – 500MM only or, contact Generator Parts today.

Additional information

Additional information

brand

IEP Powerproducts
