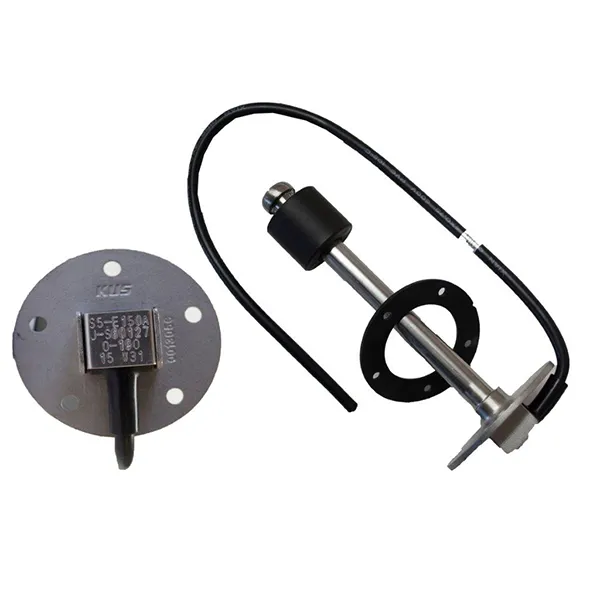

S5-E150 Single Tube Sensor – H/L Alarm 150MM

SKU: S5-E150 Categories: ,
Description

Description

This tube sensor has been designed to sit flush on top of a tank. There is no gauge face and it relays the readings to an electronic device. The unit is suitable for a 150mm deep tank and can be mounted to the tank by a standard 5 hole flange. The sensor is manufactured out of a standard 316 stainless steel which ensures durability and corrosion resistance.  The sensor is easy to operate and directly measures the amount of fuel to aid in working out fuel consumption. The unit will automatically adjust the readings to compensate for temperature fluctuations. The sensor works on a principle of reading variations in the levels between the electrodes.
Technical specifications of the S5-E150 Single Tube Sensor – H/L Alarm 150MM
The sensor is 150mm long and has a resolution of 21mm. The resistance output signal is 0 to 190 Ohms with a protection rank of IP67 when fitted with a 2mm thick NBR gasket or a 2mm FPM gasket for a fuel tank. It has an anti vibration feature with a rated power of 125 mW. The rated current for the alarm switch is 0.5 Amps. The wiring is a standard PVC material but a corrugated pipe cover is available should it be necessary. The resistance control signal is 0 to 190 Ohms.  The precision range is 10 – 40mm, available length is 150mm – 1200mm. Operating temperatures are between -40 degrees Celsius up to 85 degrees Celsius.
Characteristics of the S5-E150 Single Tube Sensor – H/L Alarm 150MM
This unit comes with a 460mm length of wire for external connections.  As the unit is made from stainless steel it is eminently suitable for arduous conditions and will prove to be long lasting. It has anti-vibration features which means that there will not be false readings caused by movement. The unit is neat and unobtrusive and can be utilised in a number of different situations. Order an S5-E150 Single Tube Sensor – H/L Alarm 150MM online or, contact Generator Parts today.

Additional information

Additional information

brand

Generator Parts

Reviews (0)

Reviews

There are no reviews yet.

Be the first to review “S5-E150 Single Tube Sensor – H/L Alarm 150MM”
Shipping & Delivery
You can shop in store, online with generatorparts.co.za or request a quote. We courier throughout South Africa. Delivery cost is based on product weight and your location.
