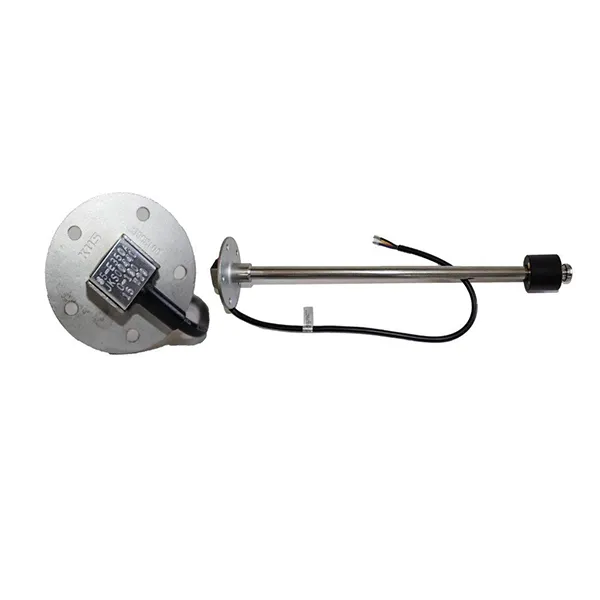

S5-E170 Single Tube Sensor 170MM
The S5-E170 Single Tube Sensor 170MM measures the fuel level and sends it to a gauge or controller. (170 mm long)
About this part
An electrical level sensor lets the genset controller or a remote monitor read the tank level. That makes low-fuel alarms, automatic refuelling and remote monitoring possible.
Features
- 5x M5 Screws
- 2mm Thick NBR Gasket
When to replace it
- Adding remote fuel monitoring
- Faulty or erratic level reading
- New tank installation
Before you order
Choose the sensor length to suit the tank depth and check the signal type matches your gauge or controller input.
Not sure it is the right one? A photo of the old part and the nameplate of the machine it came off is usually all the counter needs to confirm a match.
Questions
Can I connect it to my controller?
If the controller has a fuel level input that matches the sensor's output. Send us the controller model and we will confirm.
Specifications
| Part number | S5-E170 |
|---|---|
| Brand | IEP Power Products |
| Range | Level Sensors, Alarms & Flanges |
| Length | 170 mm |
| Main Material | Stainless Steel 316 |
| Assembly | SAE Standard 5 Holes |
| Rated Power | 125mW |
| Rated Current for alarm Switch | 500mA |
| Wire | PVC material |
| Output Signal | Resistance Control Signal: 0-190 Ohms |
| Resolution Range | 10-40mm |
| Operating Temperature | -40°C~+85°C |
Not sure it fits?
Send us the number on your old part, or a photo with the engine or alternator nameplate, and we'll confirm the match.
