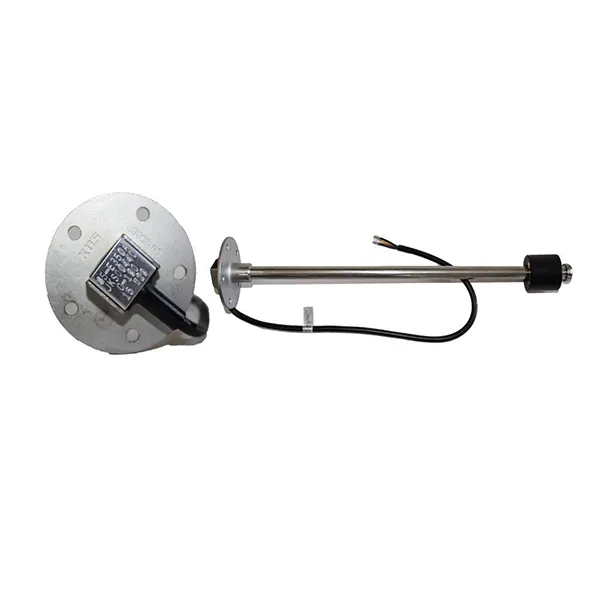

S5-E280 Single Tube Sensor – H/L Alarm 280MM

Description

This high quality durable sensor is manufactured from 316 stainless steel. This makes it resistant to corrosion and very strong. There is no dial on this level measuring unit but there is a very accurate sender that relays the level to the user. The S5 – E280 single tube sensor 280mm can be used on fuel or water tanks and works equally well on either liquid. On the European standard it will show 0 Ohms at empty and 180 Ohms at full. To determine the length of the single tube sensor needed the tank should be measured inside and in a plastic tank the unit should be 25mm less than the tank depth. In a metal tank the gap should be around 12.5mm less than the tank depth.
Technical specifications of the S5-E280 Single Tube Sensor – H/L Alarm 280MM
The operating temperature of the unit is between -40 degrees Celsius up to 85 degrees Celsius. The operating voltage is 12 or 24 Volts DC. The rated current for the alarm switch is 0.5 Amps. The S5 range comes in a number of different lengths to suit many types of tank and ranges from 150mm up to 1200mm. The single tube sensor is mounted with a 5 hole flange. If the sensor is being used on a fuel tank a 2mm thick NBR gasket or a 2mm FPM gasket should be fitted.
Characteristics of the S5-E280 Single Tube Sensor – H/L Alarm 280MM
This unit is very useful for measuring fuel usage in order to calculate fuel consumption. The sensor has a protection rating of IP67. The unit will automatically adjust the readings to compensate for temperature fluctuations and has an anti vibration feature. There are two flying leads at the end of a 460mm long cable. Order your S5-E280 Single Tube Sensor – H/L Alarm 280MM online or, contact Generator Parts today.
