S5-E650 Single Tube Sensor 650MM

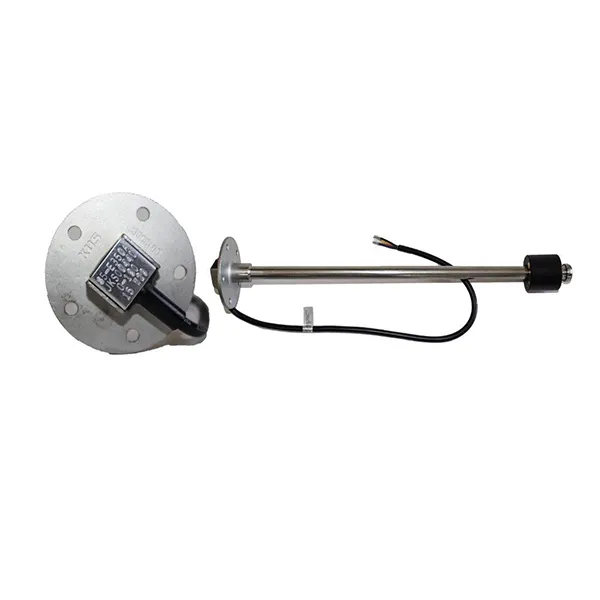

S5-E650 is a tube-type fuel level sensor (650 mm long) for generator tanks.
About this part
An electrical level sensor lets the genset controller or a remote monitor read the tank level. That makes low-fuel alarms, automatic refuelling and remote monitoring possible.
Features
- 5x M5 Screws
- 2mm Thick NBR Gasket
When to replace it
- Adding remote fuel monitoring
- Faulty or erratic level reading
- New tank installation
Before you order
Choose the sensor length to suit the tank depth and check the signal type matches your gauge or controller input.
Match the number stamped on the part you are removing, or the number in your engine or alternator manual, before ordering. Part numbers are shown for reference so the right replacement can be identified.
Questions
Can I connect it to my controller?
If the controller has a fuel level input that matches the sensor's output. Send us the controller model and we will confirm.
Specifications
| Part number | S5-E650 |
|---|---|
| Brand | IEP Power Products |
| Range | Level Sensors, Alarms & Flanges |
| Length | 650 mm |
| Main Material | Stainless Steel 316 |
| Assembly | SAE Standard 5 Holes |
| Rated Power | 125mW |
| Rated Current for alarm Switch | 500mA |
| Wire | PVC material |
| Output Signal | Resistance Control Signal: 0-190 Ohms |
| Resolution Range | 10-40mm |
| Operating Temperature | -40°C~+85°C |
Not sure it fits?
Send us the number on your old part, or a photo with the engine or alternator nameplate, and we'll confirm the match.
