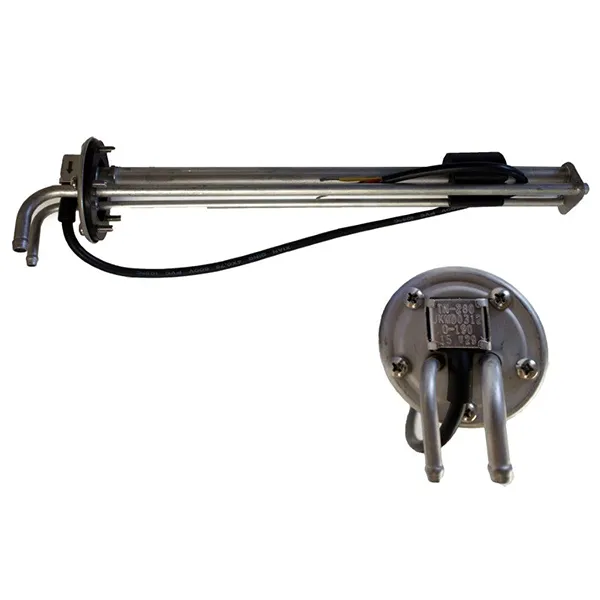

TN/L3 280 TN Sensor – L3 Series Fuel Gauge 280MM

Description

The TN sensor uses fluid buoyancy and magnetic induction to provide one of the most accurate level sensors available. The simple but efficient design will ensure the unit remains in service for many years.  The sensor has a rather unique shape in that it is designed to the shape of the tank to allow for exact measurements in the tank level. The sensor also features a nylon filter over the open end of the sensor. This is to keep particles away from the float so that the only moving part of the sensor remains free from obstruction. This also makes it particularly reliable as there is only one moving part which is the float thereby minimizing potential mechanical failure.
Technical specifications of the TN/L3 280 TN Sensor – L3 Series Fuel Gauge 280MM

Mounting : SAE standard 5 hole or 6 hole flange
Length : Range from 150mm up to 700mm
Rated power : 125mW
Rated current for the alarm switch : 0.5 Amps
Operating temperature : -40 degrees Celsius up to 85 degrees Celsius
Resolution range : 10 – 40mm
Output signal: Resistance control signal of 0 -190 Ohm European standard and 240 – 33 Ohm American standard. This can be customised to the users specifications

Characteristics of the TN/L3 280 TN Sensor – L3 Series Fuel Gauge 280MM
The unit is manufactured from stainless steel which provides strength and corrosion resistance. It uses reed switches to accurately read the level of the tank. These reed switches are hermetically sealed so that they remain immune from corrosion. The magnet on the float level opens and closes the reed switches as the tank level drops thereby providing a very accurate reading. The TN L3 280 is leak proof and fully insulated to protect against voltage inside the tank. The unit is easily installed and has a long working life. It is one of the most affordable alarm sensor level units available and has a reputation for being a high quality product. It can be connected to Delphi, Tyco or other compatible units. Order a TN L3 280 TN sensor L3 series 280mm from Generator Parts today.
