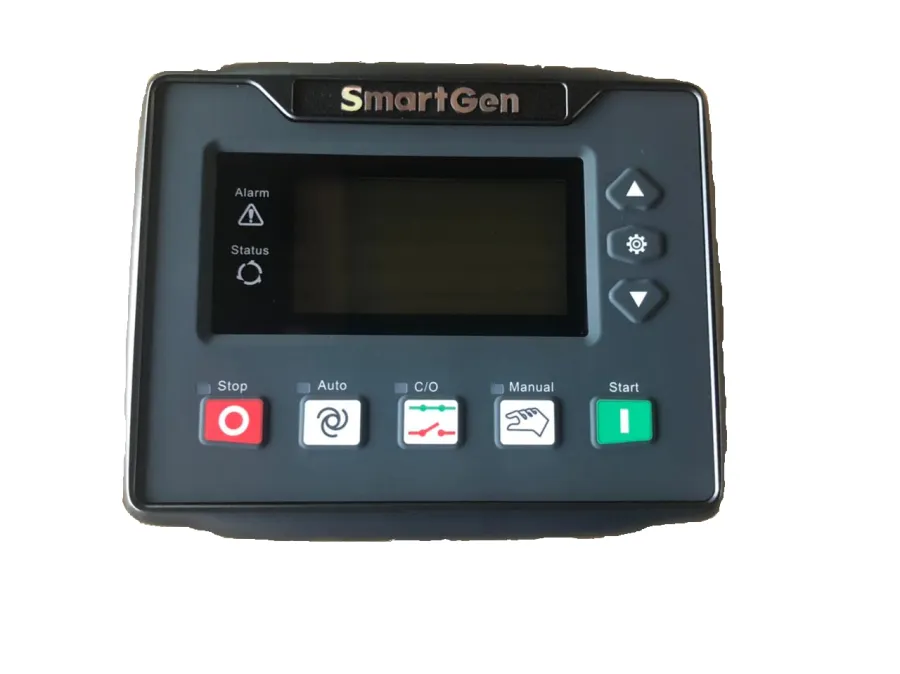

SMA3000-0003 Genset Controller

Description

This SMA3000-0003 Genset Controller series genset controllers integrate digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve automatic start/stop, data measurement, alarm protection and etc. functions. It fits with LCD display, optional languages interface (Chinese, English, Spanish, Russian, Turkish, French, Portuguese, and Polish), and it is reliable and easy to use.

The SMA3000-0003 Genset Controller series genset controllers adopt micro-processor technology with precision parameters measuring, fixed value adjustment, time setting and set value adjusting and etc. All parameters can be configured from front panel or through programmable interface (USB or RS485 interface) via PC. It can be widely used in all types of automatic genset control system with compact structure, advanced circuits, simple connections and high reliability.
SMA3000-0003 Genset Controller Technical Specifications

Operating Voltage: DC8.0V to DC35.0V, Continuous Power Supply.
Power Consumption: <3W (standby ≤2W) Alternator Frequency: 50Hz/60Hz Speed Sensor Voltage: 1.0V to 24.0V (RMS) Speed Sensor Frequency: 10,000 Hz (max.) Starting Relay Output: 5A DC28V at supply output Fuel Relay Output: 5A DC28V at supply output Programmable Relay Output 1: 1A DC28V at supply output Programmable Relay Output 2: 1ADC28V at supply output Programmable Relay Output 3: 1A DC28V at supply output Programmable Relay Output 4: 1A DC28V at supply output Case Dimension: 135mm x 110mm x 44mm Panel Cutout: 116mm x 90mm CT Secondary Current: 5A rated Working Conditions Temperature: (-25~+70)°C; Relative Humidity: (20~93)%RH Storage Condition Temperature: (-25~+70)°C Protection Level IP65: rubber seal installed between the controller enclosure and panel fascia. Net Weight: 0.32kgSMA3000-0003 Genset Controller Performance Characteristics132x64LCD with backlight, selectable language interface (Chinese, English, Spanish, Russian, Turkish, French, Portuguese, and Polish), push-button operation. Hard-screen acrylic material been used to protect screen with great wear-resisting and scratch-resisting functions. Silicone panel and pushbuttons can be used in extreme temperature environment. Equipped with CANBUS port and can communicate with J1939 genset. Not only can monitor frequently-used data (such as water temperature, oil pressure, speed, fuel consumption and so on) of ECU machine, but also control starting up, shutdown, raising speed and speed droop via CANBUS port (need controller with CANBUS interface). Suitable for 3-phase 4-wire, 3-phase 3-wire, single phase 2-wire, and 2-phase 3-wire systems with voltage 120/240V and frequency 50/60Hz; Collects and shows 3-phase voltage, current, power parameter and frequency of generator or mains.
