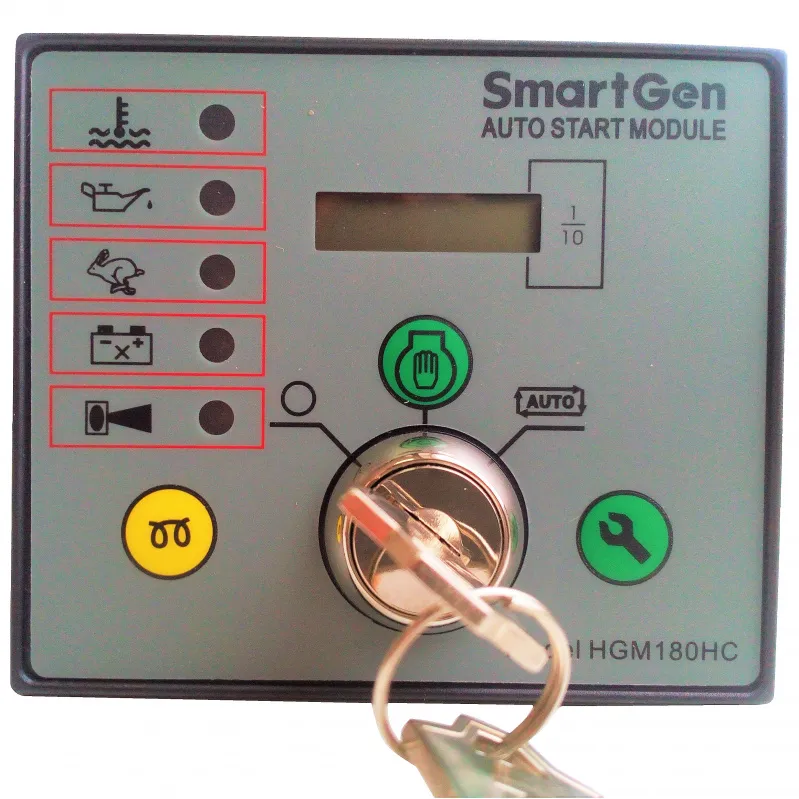

SMA3000-0011 Genset Controller

Description

The SMA3000-0011 Genset Controller auto start module is an engine control module designed to control the engine via push buttons on the front panel or remote start signal. The module has 3 working modes to choose. When detecting faults, such as low oil pressure, high water/cylinder temperature, auxiliary alarm, over speed, it will disconnect fuel relay and energize to stop. LED annunciator displays the faults, which can offer real and effective alarm information.
HGM180HC Genset Controller Technical Specifications

Working Voltage: DC8.0V to 35.0V continuous
Power Consumption Standby: (12V: 0.12W, 24V: 0.24W) Working (12V: 0.5W, 24V: 1W)
Alternator Voltage Input: 15VAC – 360VAC (ph-N)
Alternator Rated Freq: 50/60Hz
Over Speed Freq: 114% of rated freq.
Condition of Crank Disconnect Generator voltage: ≥15VAC and frequency ≥15Hz
Charge Failure Voltage: <3V 4 Digital Inputs: Connect to B- active Start Output: 1Amp DC28V relay output B+ Preheat Output: 1Amp DC28V relay output B+ Fuel Output: 1Amp DC28V relay output B+ Stop Output: 1Amp DC28V relay output B+ Programmable Output: 1Amp DC28V relay output B+ Hours Counter: Max 99999.9 hours Case Dimensions: 84mm x72mm x 35mm Panel Cutout: 78mm x 66mm Working Condition Temperature: (-30~+70)ºC Humidity: (20~90)% Storage Condition Temperature: (-40~+80)ºC Protection Level IP55: when waterproof rubber gasket added between controller and its panel. IP42: when waterproof rubber gasket not added between controller and its panel. Insulation Intensity Object: among input/output/power Quote standard: IEC688-1992 Test way: AC1.5kV/1m 3mA leakage current Weight: 0.2kgHGM180HC Genset Controller Performance CharacteristicsWide range of DC power input With low oil pressure, high water/cylinder temperature, over speed protection and indication Charge fail warn, not shutdown With an additional auxiliary input signal, alarm to shutdown Speed signal is from power frequency LED displays all kinds of alarm states With run hour LCD display With fuel oil output, starting output, preheat output, shutdown output, common alarm/idle output, all relay output With the idle control function, idle delay time is programmable Preheat delay time is programmable Crank disconnect conditions can choose oil pressure + generator (factory default), also can choose only generator When dial the code switch to idle/high speed active, idle/high speed output can be configured, or it will be common alarm output. See the picture: Modular structure design, ABS plastic casing, embedded installation, compact structure with small volume, advanced SCU control, stable performance and convenient operation.
