TN/L3 150 TN Sensor – L3 Series Fuel Gauge

SKU: TN/L3 150 Categories: ,
Description

Description

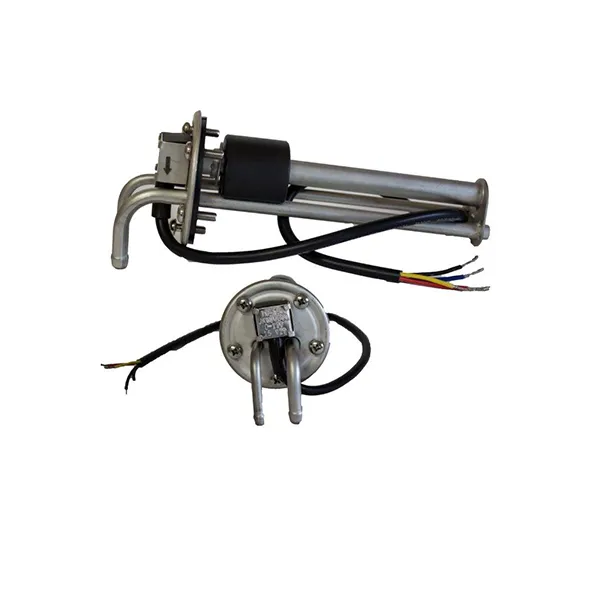

This unit is a 150mm long fuel gauge that shows the level of fuel in the tank. The TN L3 series is manufactured from stainless steel. The use of fluid buoyancy and magnetic induction measures the liquid level. This unit provides very precise measurements and it is corrosion resistant and leak proof. The unit is used to measure and show the level of the liquid in the genset fuel tank. It had been designed for ease of installation and to conform to the depth and shape of the fuel tank. The L3 TN series reads the level of the fuel by means of a series of reed switches which are positioned inside the level tube. The float has built in magnets which trigger the reed relays that then give a value that increases or decreases according to the fuel levels. The float is the only moving part in the unit and therefore reduces the possibility of mechanical failure.
Technical specifications for the TN/L3 150 TN Sensor – L3 Series Fuel Gauge
All the L3 TN series are fully insulated to protect against voltage in the tank. The mounting is an SAE standard 5 or 6 hole flange. The length options range from 150mm to 700mm. Rated power is 125mW and the rated current for the alarm switch is 0.5 Amp. The wires are covered by PVC although a corrugated pipe cover is available. The output resistance control signal is European standard 0 – 190 Ohms and American standard 240 to 33 Ohms. The operating temperature is from minus 40 degrees Celsius up to 85 degrees Celsius.
Benefits of using the TN/L3 150 TN Sensor – L3 Series Fuel Gauge
The unit is manufactured to the highest standards using high quality materials. It is reasonably priced and made to fit a tank of just over 150mm depth. The unit has a nylon filter on the suck and return system. The L3 TN series is made of stainless steel for strength and durability and has a variety of tube lengths to fit any tank. Order the TN/L3 150 TN Sensor – L3 Series Fuel Gauge online or, contact Generator Parts today.
