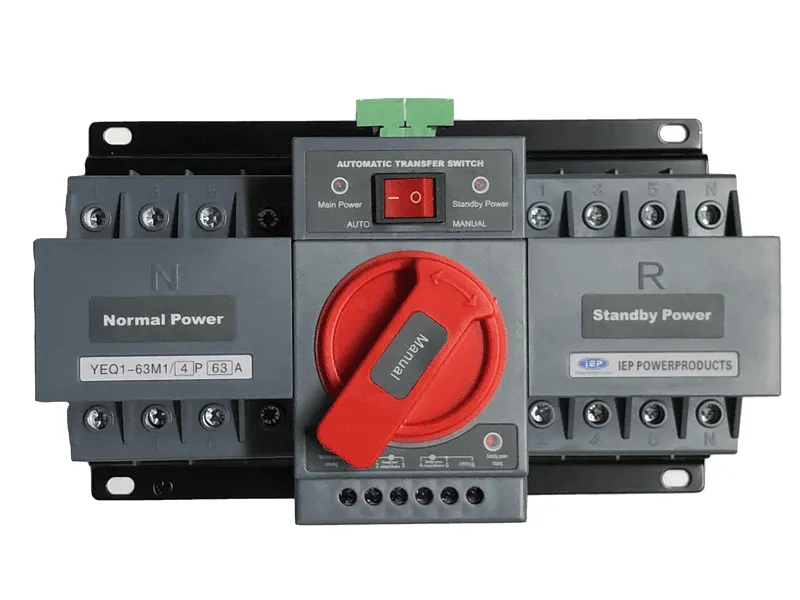

YEQ1-GP 63Amp 4-POLE Automatic Changeover Switch
63A/4P is an automatic transfer switch (ATS), rated 63 A with 4 poles for standby generator installations.
About this part
When the mains fails, the generator controller starts the engine and the changeover switch moves the load across once the generator voltage is stable. When the mains returns, it switches back. The two supplies are never connected at the same time, which protects the generator and anyone working on the grid.
Features
- Have the function of breaking capacity and features.
- Self-input and Self-recover function
- Automatic and Manual function
When to replace it
- Installing a new standby generator
- Upgrading a manual changeover to automatic
- A switch that no longer transfers reliably
- Increasing the size of the supply
Before you order
Mount the switch in a proper enclosure out of the weather, and test the changeover under load after installation.
Not sure it is the right one? A photo of the old part and the nameplate of the machine it came off is usually all the counter needs to confirm a match.
Questions
3-pole or 4-pole?
A 4-pole switch switches the neutral as well as the three phases. Your electrician will choose based on the earthing arrangement and local regulations.
Can I fit it myself?
No. Changeover switches connect to the mains supply and must be installed by a registered electrician.
Specifications
| Part number | 63A/4P |
|---|---|
| Brand | IEP Powerproducts |
| Range | Automatic Changeover Switches |
| Current rating | 63 A |
| Poles | 4 |
Not sure it fits?
Send us the number on your old part, or a photo with the engine or alternator nameplate, and we'll confirm the match.
