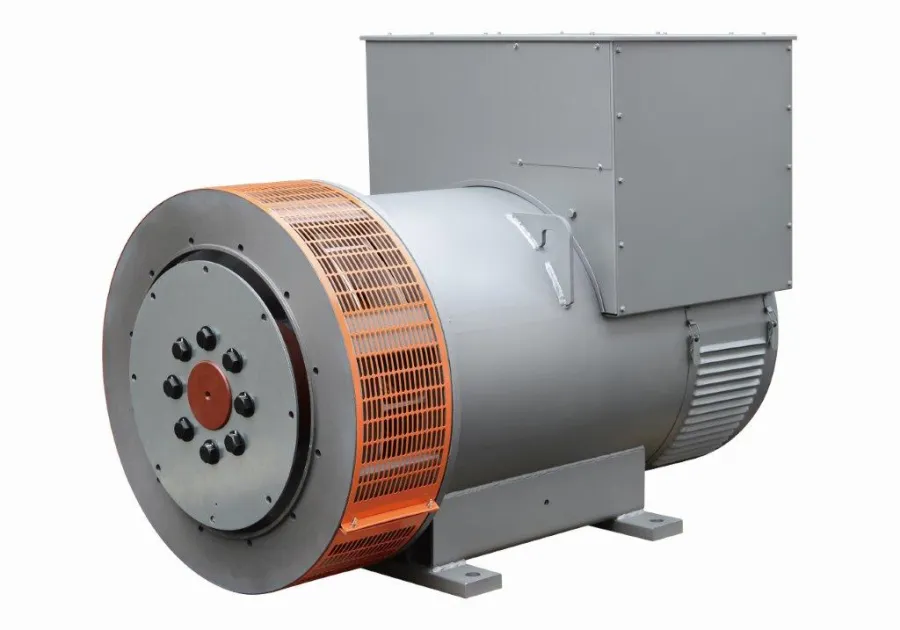

DG634B Single Bearing Dingol Alternator – 750KVA/600KW
Looking for the power end of a generator? The Dingol DG634B, rated 750 kVA / 600 kW turns engine power into a stable three-phase supply.
About this part
A brushless alternator with an AVR gives a regulated supply with no brushes or slip rings to wear, which is why it is the standard choice for standby and prime-power sets.
Features
- 750KVA
- 600KW
- 50HZ
- 1500RPM
- Three Phase
- Easy paralleling with mains or other generators
- Standard 2/3 pitch windings to avoid excessive neutral currents
- One slot stator skewing to further reduce harmonics
When to replace it
- Building a new generating set
- Replacing an alternator with damaged windings
- Upgrading a set to a different output rating
Before you order
Confirm the engine flywheel and housing (SAE) size and the bearing arrangement before ordering. A single-bearing alternator is carried by the engine flywheel at one end and needs the matching coupling discs.
Not sure it is the right one? A photo of the old part and the nameplate of the machine it came off is usually all the counter needs to confirm a match.
Questions
What is the difference between kVA and kW?
kVA is the apparent power the alternator can supply; kW is the real power at a 0.8 power factor. A 100 kVA alternator delivers about 80 kW.
What does single bearing mean?
The alternator has one bearing at the non-drive end. The drive end is supported by the engine flywheel through a flexible coupling.
Specifications
| Part number | DG634B |
|---|---|
| Brand | Dingol |
| Range | Alternators |
| Output (apparent) | 750 kVA |
| Output (real) | 600 kW |
| Bearing | Single bearing |
| Power Input | 643KW @ 400V |
Not sure it fits?
Send us the number on your old part, or a photo with the engine or alternator nameplate, and we'll confirm the match.
