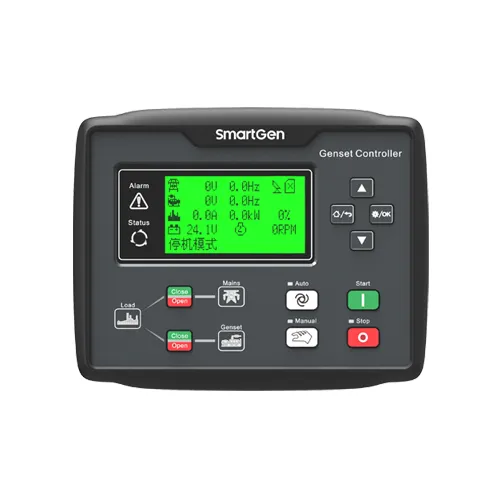

SMA3000-0013 Genset Controller

SKU: SMA3000-0013 Category:
Description

Description

This SMA3000-0013 Genset Controller series genset controller, integrating digital, intelligent and network techniques, is used for automatic control and monitoring system of genset. It can carry out functions ofautomatic start/stop, data measurement, alarm protection and three “remote” (remote control, remotemeasureand remote communication). The controller uses LCD display, optional display interface including Chinese, English, Spanish, Russian, Portuguese, Turkish, Polish and Frenchwith easy and reliable operation.

The SMA3000-0013 Genset Controller series gensetcontroller uses 32-bit microprocessor which can achieveprecision measurement, value adjustment, timing and threshold settingetc.All the parameters can be configured from front panel or use USB interface (or RS485 interface) to adjustvia PC. It can be widely used in all types of automatic control system for its compact structure, simple connections andhigh reliability.

SMA3000-0013 Genset Controller series genset controller has network communication module inside, which can realize genset accessto internet. Aftercontrollerlogging incloud server, the unitdata information (include GPS positioning, altitude, etc.) will be uploaded in real time to the corresponding cloud server.Users can monitor the genset and inquire the genset running status, the event log, as well asconfigure the parameters via cloud server by phone APP(ISO or Android)and computer terminalequipment. The network communication module also has SMS function.
SMA3000-0013 Genset Controller Technical Specifications

Working Voltage: DC8.0V to DC35.0V, continuous power supply
Power Consumption: <5W(Standbymode: ≤3W) AC Alternator Frequency: 50Hz/60Hz Speed sensorVoltage: 1.0V to 24V (RMS) Speed sensorFrequency: 10,000 Hz (max.) Start Relay Output: 16A DC28V at supplyvoltage Fuel Relay Output: 16A DC28Vat supply voltage AuxiliaryRelay Output 1: 7A DC28V at supply voltage AuxiliaryRelay Output 2: 7AAC250V volt-free output AuxiliaryRelay Output 3: 16A AC250V volt-free output AuxiliaryRelay Output 4: 16AAC250Vvolt-free output Overall Dimensions: 209mm x 167mm x 45mm Panel Cutout: 186mm x 141mm C.T. SecondaryCurrent: 5A (rated) Working Temperature: (-25~+70)ºC Working Humidity: (20~93)%RH Storage Temperature: (-30~+80)ºC Protection Level: IP65: when water-proof gasket installed between control panel and enclosure. Insulation Intensity: ApplyAC2.2kV voltagebetween high voltage terminal and low voltage terminal. The leakage current is not more than 3mA within 1min. Weight: 0.91kgSMA3000-0013 Genset Controller Performance Characteristics132*64 LCD display with backlight, eight optional languages interface (Chinese, English, Spanish, Russian, Portuguese, Turkey, Polish and French), push-button operation Acrylic screen, improved wearable and scratch resistance property Silica-gel panel and keys can well adapt to higher and lower temperature Adapt to 3P4W,3P3W, 1P2W and 2P3W (120V/240V), 50Hz/60Hz AC power system Can collect and display 3-phase voltage, 3-phase current, frequency, power parameter of mains/gens
