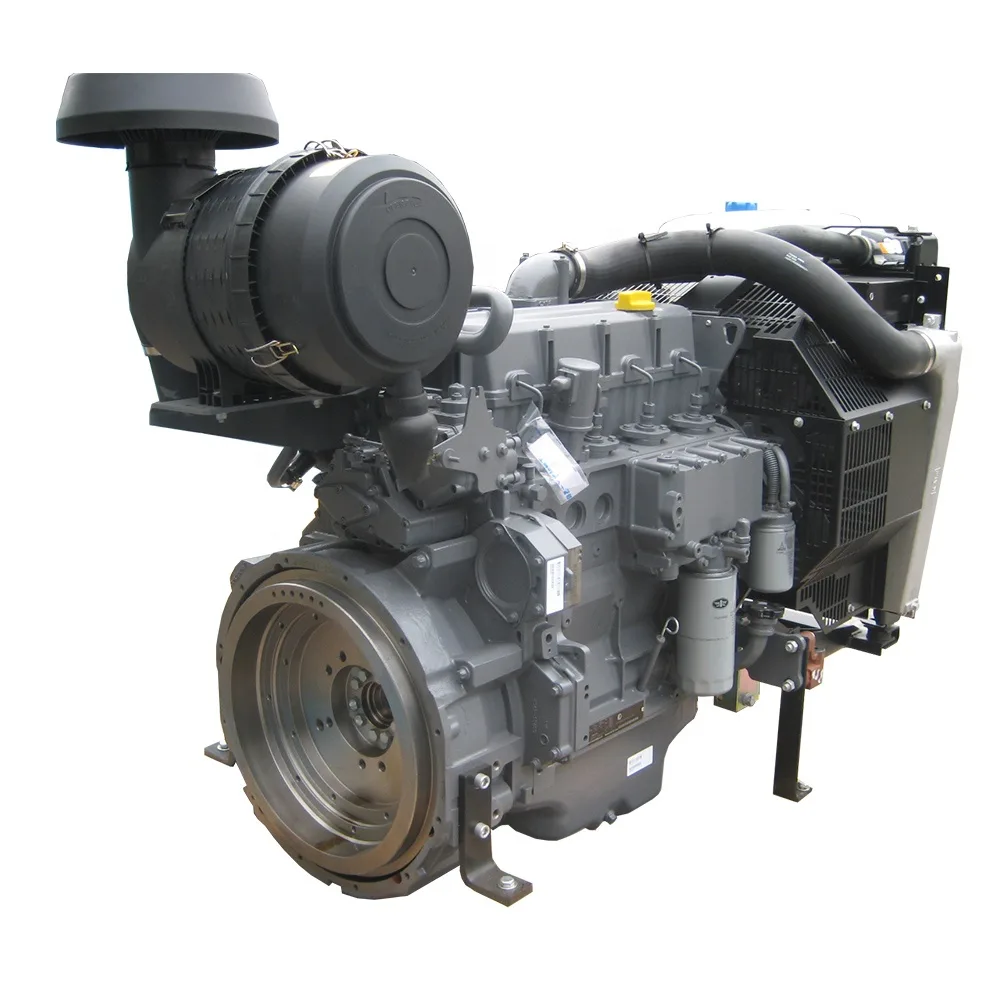

BFM3-G1 G-Drive Engine – Prime Output 20KVA

Description

Specifications of the BFM3-G1 G-Drive Engine
Engine Model: BFM3 G1
Prime Power Output: 20KVA
Standby Power Output: 22KVA
Volt: 12V
Structure In-line: 4 cylinder, water cooling, 4 stroke
Rotation direction: Face to flywheel end, anticlockwise rotation
Liner: Dry liner
Valve layout: One inlet one exhaust per cylinder
Fuel system: Electronic control unit pump
Aspiration: Naturally Aspiration
Bore/stroke（mm）: 98/105
Displacement（L）: 3.168
Weight, Engine dry, w/o cooling system: 245KG

Output:
Gross output (LTP or StandBy Power): 22kW
Fan reduction: 2kW
Electrical output: 22kVA
Gross output (PRP or Prime Power): 20kW
Gross output (Continous Power): 19kW

Fuel System (PRP) Fuel consumption:
25% load3 1.6
50% load3 2.8
75% load3 4.0
100% load3 5.4
25% load 260
50% load 234
75% load 228
100% load 228
Max. suction head of fuel feed pump 1.0
